Technical details

• Grain Flow Forged HD: One-piece Grain Flow Forged HD from 1025E Pure Select mild carbon steel at Mizuno’s iconic facility in Hiroshima, Japan – where Mizuno irons have been produced since 1968.
• 1025 Boron: A   carbon steel that features 30% greater strength
• Harmonic Impact Technology: Fine tuned head geometry delivers ideal impact feel and feedback
• Quad Cut Grooves: Milled narrow/deep grooves optimized for stronger lofts and wide/shallow grooves optimized for higher lofts
• Hydroflow Micro Grooves: Laser etched microscopic grooves help channel away moisture for maximum spin in wet conditions
• Face Milling Lines: Increased   surface roughness to increase spin nearer the green
• Loft/COG Flow Design: The COG   of the wedge flows throughout the set to give more control and versatility
• Bounce Specific Sole Grinds: Matched   bounce andsole grind for an ideal level of versatility
• Loft Specific Head Shapes: Graduated   head shapes from pitching wedge to lob wedge ideally suited for how each wedge is used

Standard Steel Shaft

KBS Hi Rev 2.0 115 Chrome (Wedge)

Standard Grip

Golf Pride MCC Teams Black-Grey

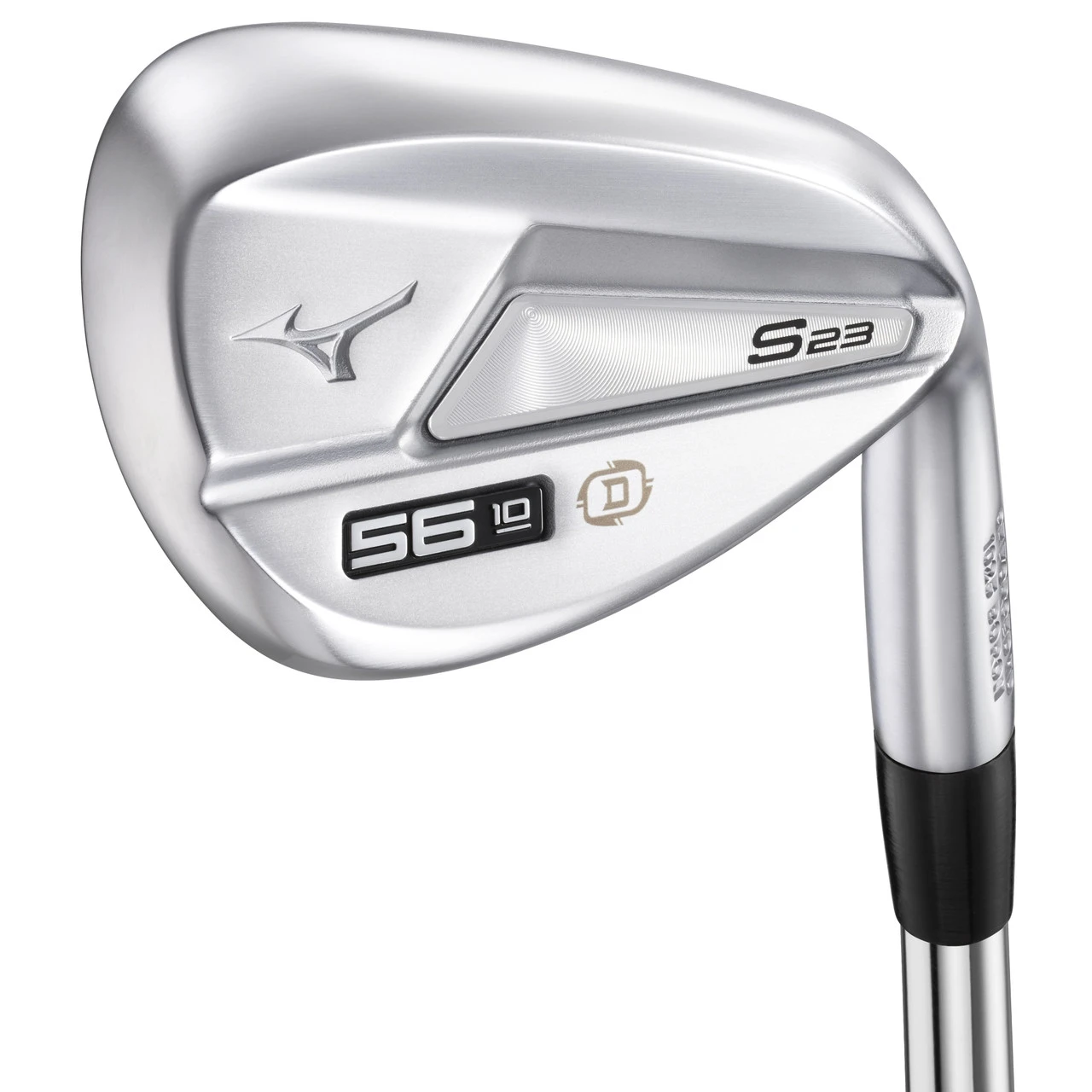

S23 Wedges Specification

S Grind

Club #	Loft °	Lie Angle	Length (inch)	Bounce
44/06	44	63	35.5	6
45/07	45	63	35.5	7
46/08	46	63	35.5	8
47/09	47	63	35.5	9
48/10	48	63	35.5	10
49/07	49	63	35.5	7
50/08	50	63	35.25	8
51/09	51	63	35.25	9
52/10	52	63	35.25	10
53/11	53	63	35.25	11
54/10	54	63	35.25	10
55/11	55	63	35.25	11
56/12	56	63	35.25	12
57/13	57	63	35.25	13
58/14	58	63	35.25	14

Dexterity: Satin Chrome finish RH only, Copper Cobalt finish RH, Copper Cobalt finish LH except for lofts 44/06, 45/07, 46/08, 47/09, 48/10

D Grind

Club #	Loft °	Lie Angle	Length (inch)	Bounce
54/08	54	63	35.25	8
55/09	55	63	35.25	9
56/10	56	63	35.25	10
57/11	57	63	35.25	11
58/12	58	63	35.25	12

Dexterity: Satin Chrome finish RH only, Copper Cobalt finish RH & LH

C Grind

Club #	Loft °	Lie Angle	Length (inch)	Bounce
56/06	56	63	35.25	6
57/07	57	63	35.25	7
58/08	58	63	35.25	8
59/09	59	63	35.25	9
60/10	60	63	35.25	10

Dexterity: Satin Chrome finish RH only, Copper Cobalt finish RH & LH

X Grind

Club #	Loft °	Lie Angle	Length (inch)	Bounce
58/04	58	63	35.25	4
59/05	59	63	35.25	5
60/06	60	63	35.25	6
61/07	61	63	35.25	7
62/08	62	63	35.25	8

Dexterity: Satin Chrome finish RH only, Copper Cobalt finish RH & LH
